Clamp + Rail Solar Mounting: The Non-Penetrating Solution for Reliable Metal Roof Installations

When it comes to mounting solar panels on metal roofs, the Metal Roof Clamp System has emerged as one of the most reliable and efficient solutions available today. Whether you’re working with standing seam, trapezoidal, or corrugated metal roofing, this system offers a secure, non-penetrating attachment method that preserves your roof’s integrity while delivering exceptional holding strength.

What Is a Metal Roof Clamp + Rail System?

A metal roof clamp + rail system is a purpose-built photovoltaic mounting solution designed exclusively for metal roof profiles. Its defining feature is a non-penetrating attachment method: instead of drilling through metal roof sheeting, the system uses engineered clamps to mechanically grip the roof’s structural seams or ribs, securing aluminum rails that form the mounting platform for solar modules.

Unlike traditional mounting methods that require drilling through the roof, this system uses clamp-based solutions that grip the seam or rib without piercing the metal sheet—a non-penetrative approach that preserves the roof’s waterproofing integrity.

1. Core Components

The system relies on a streamlined, modular part set that simplifies logistics and installation:

Roof clamps: The anchoring core of the system, manufactured in multiple profile-specific designs to match standing seam, trapezoidal, and corrugated roof geometries. They transfer wind uplift and snow loads directly into the roof’s structural framework.

Aluminum mounting rails: Anodized aluminum rails (available in full-length and short-rail configurations) that create a stable, uniform base for PV modules. C-profile rails double as integrated cable channels for clean wiring management.

Module fasteners: Mid-clamps (for securing adjacent panels) and end-clamps (for array edges) that lock framed PV modules to the rails with even, consistent pressure.

2. System Variants & Specifications

The system is offered in two performance tiers to match project requirements:

Premium type: Optimized for standard commercial and residential applications, rated for snow depths up to 99 cm and a reference wind speed of 46 m/s.

Enhanced type: Built for extreme weather and heavy-load environments, with upgraded load-bearing capacity for deeper snow accumulation and higher wind speeds.

All variants are CE-certified, constructed from corrosion-resistant anodized aluminum, and backed by a 10-year product warranty. They comply with major international design standards including EN 1990, EN 1991, AS/NZS 1170, and DIN EN 1991.

3. Compatible Roof Types

Thanks to its interchangeable clamp designs, the system delivers universal compatibility across all mainstream metal roof profiles:

• Standing seam roofs (snap-lock, mechanical lock, T/bulb seam profiles)
• Trapezoidal metal sheet roofs
• Corrugated metal roofs

Why Choose a Clamp + Rail System?

The clamp + rail design addresses the most common pain points of metal-roof solar installation, delivering measurable advantages for installers, building owners, and project developers alike.

1. Zero Penetration, Zero Leak Risk

This is the system’s most transformative benefit. By gripping existing roof ribs instead of drilling through sheeting, the mounting solution completely eliminates the risk of water intrusion. It also preserves the original roof manufacturer’s warranty—a critical protection for commercial and industrial building owners managing large roof assets.

2. Precision Fit for Every Roof Profile

No two metal roof systems are identical. The clamp + rail platform comes with a perfect-fit guarantee: clamps are engineered to match the exact rib height, spacing, and seam geometry of each roof type. This tailored engagement maximizes gripping strength and eliminates compatibility gaps that can cause slippage or load failure.

3. Unmatched Versatility Across Project Scales

From large industrial factories and logistics warehouses to public buildings and residential metal roofs, the system scales seamlessly. It accommodates all standard framed PV modules and works across a full range of roof slopes, making it a flexible solution for residential, commercial, and utility-scale rooftop projects.

4. Faster Installation, Lower Labor Costs

Most components ship pre-assembled, and the clamp-on design requires no specialized welding or complex tooling. A two-person crew can complete mounting work in a fraction of the time required for traditional penetrating systems, reducing on-site labor hours, shortening project timelines, and lowering overall installed cost.

5. Proven Structural Durability

Engineered for extreme weather performance, each clamp delivers a holding strength ranging from 1,500 to over 3,000 lbs. The system is tested to withstand wind speeds up to 60 m/s and snow loads up to 1.4 kN/m². Anodized aluminum construction provides excellent corrosion resistance, ensuring long-term reliability in coastal, industrial, and harsh climate environments.

6. Clean Aesthetics & Integrated Cable Management

C-profile rails function as built-in cable raceways, allowing installers to route PV wiring neatly inside the rail profile. Available in natural aluminum or black anodized finishes, the system creates a low-profile, professional appearance that complements modern building architecture.

How the System Works

For Standing Seam Metal Roofs

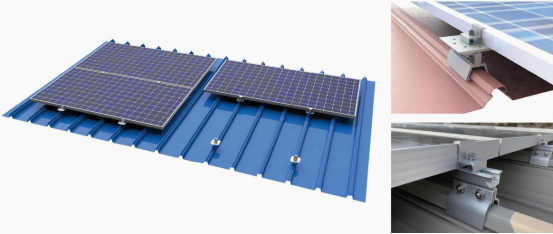

The standing seam clamp grips the vertical rib of the roof panel without penetration. The rail is then attached to the clamp using bolts or a holding bracket. Modules are secured to the rails using mid-clamps and end-clamps. The design allows for centric load distribution, eliminating leverage effects on the seam clamp.

For Trapezoidal and Corrugated Metal Roofs

Short rails are fixed directly onto the crest of trapezoidal roof sheets using self-tapping sealing screws, often pre-assembled with EPDM seals. These short rails can be adjusted flexibly to accommodate different corrugation grids. Modules are then connected to the rails through mid and end clamps.

Installation Overview

Installing a Metal Roof Clamp + Rail System typically follows these steps:

1.Plan and mark clamp positions according to the system layout

2.Clean the roofing areas where clamps will be affixed

3.Attach clamps to the roof seams or ribs and secure with the specified torque

4.Install rails onto the clamps using L-feet or direct connections

5.Secure modules using mid-clamps and end-clamps

6.The entire process is designed to be intuitive, with many components arriving pre-assembled for maximum efficiency.

Applications

The Metal Roof Clamp + Rail System is widely used across various project types:

1.Industrial facilities – factories with large trapezoidal metal roofs

2.Commercial buildings – shopping centers, office buildings, logistics warehouses

3.Public buildings – schools, hospitals, sports facilities

4.Residential properties – homes with metal roofing

Conclusion

The Metal Roof Clamp + Rail System represents the gold standard for solar mounting on metal roofs. It combines non-penetrative attachment, rapid installation, exceptional holding strength, and cost-effective material usage into one integrated solution.

Whether you’re an installer looking for efficiency, a building owner concerned about roof integrity, or a project developer focused on long-term reliability, this system delivers on every front. With proven performance across all major metal roof types and compatibility with a wide range of solar modules, it’s the mounting solution you can trust for decades to come.

Ready to learn more about our Metal Roof Clamp + Rail Systems? Contact our team today for product specifications, pricing, and project consultation.
